Soundproofing Materials Guide: STC Logic, Product Types, and Room-by-Room Choices

How soundproofing actually works: mass, decoupling, damping and sealing ranked by leverage; the material map from MLV to resilient channels; and reading STC and NRC ratings.

"How do you soundproof a room" pulls 34,000 searches a month, and the honest answer starts with an uncomfortable split: absorption products — foam, fabric panels, wool — tame the sound already inside a room; soundproofing — actually blocking transmission — runs on mass, decoupling, damping and sealing. A 25 mm acoustic panel adds about 1 dB of transmission loss to a party wall. Know which problem you have before buying either.\n\n

\n

The four mechanisms, in order of leverage

\n

Mass. Heavier barriers block more; the mass law buys you roughly 6 dB per doubling of surface weight. Adding a second layer of 15 mm gypsum board to a stud wall is the cheapest dB on the market. Decoupling. Separate the two faces so vibration cannot travel through the framing — resilient channels, staggered studs, or a fully independent frame. This is where big jumps live. Damping. Constrained-layer damping — viscoelastic glue between two rigid boards — converts panel vibration to heat and beats simply adding a third board. Sealing. The oldest rule in building acoustics: a gap totaling 4% of a surface passes 95% of the sound. Back-to-back electrical boxes, untreated window perimeters and door undercut defeat everything above them.

\n

Material map: what each product actually is

\n
    \n
  • Mass loaded vinyl (MLV), 2–5 mm. Dense limp sheet, adds mass without thickness. Works in walls, floors, doors. Not an absorber.
  • \n
  • Damped gypsum board (plasterboard). Factory-damped or field-glued constrained layer. The default upgrade for party walls and ceilings.
  • \n
  • Rock wool / glass wool batts, 50–100 mm, 40–100 kg/m³. Cavity insulation. The 24 kg/m³, 50 mm glass wool reaching NRC 0.95 is the category benchmark for absorption; inside a wall it also damps cavity resonance. Fibers need a facing in occupied rooms.
  • \n
  • Resilient channels / isolation hangers. Decoupling hardware for ceilings and walls. Correct screw length is the whole game — a screw bridging the channel re-couples the assembly.
  • \n
  • Acoustic sealant and perimeter strips. The last 10% of every assembly. Non-curing sealant stays flexible; rigid foam strips do not count.
  • \n
  • Soundproof doors and seals. A solid-core door with perimeter and drop seals reaches STC 30-ish; specialist acoustic doors go to STC 45+. A hollow door undercuts the wall behind it.
  • \n
\n

Reading the ratings without getting fooled

\n

STC and Rw are lab indexes for speech-frequency blocking — check which one the datasheet uses and do not mix them in a comparison. Absorption datasheets list coefficients per frequency from 100 Hz to 5 kHz; the NRC is just the 250/2k speech-band average. A coefficient above 1 is a lab edge-effect artifact, not magic — cap it at 1 in any calculation. And low-frequency performance is where cheap products hide: check the 125 Hz line before believing a single-number rating.

\n

Room-by-room starting points

\n

Party wall, neighbors' TV: add damped board on resilient channels, seal the perimeter, upgrade any electrical boxes. Home studio: mass + decoupling + damped cavity, room-within-room if the low-end matters, then treat absorption inside. Mechanical room: heavy enclosure with treated vents — the vent is the acoustic weak point, not the wall. Office meeting room: full-height partition, sealed door, absorption on the inside for intelligibility. Rental, nothing permanent: heavy bookshelves against the shared wall, thick soft floor cover, door seals — set expectations accordingly; you are managing, not solving.

\n

Where the budget actually goes

\n

In field quotes, sealing and door upgrades routinely outperform per-dollar compared with another layer of premium board. Sequence the spend: close the leaks, fix the door, add damped mass, decouple, and only then buy absorptive treatment for the room you are sitting in. Reverse that order and you pay twice.

\n\n

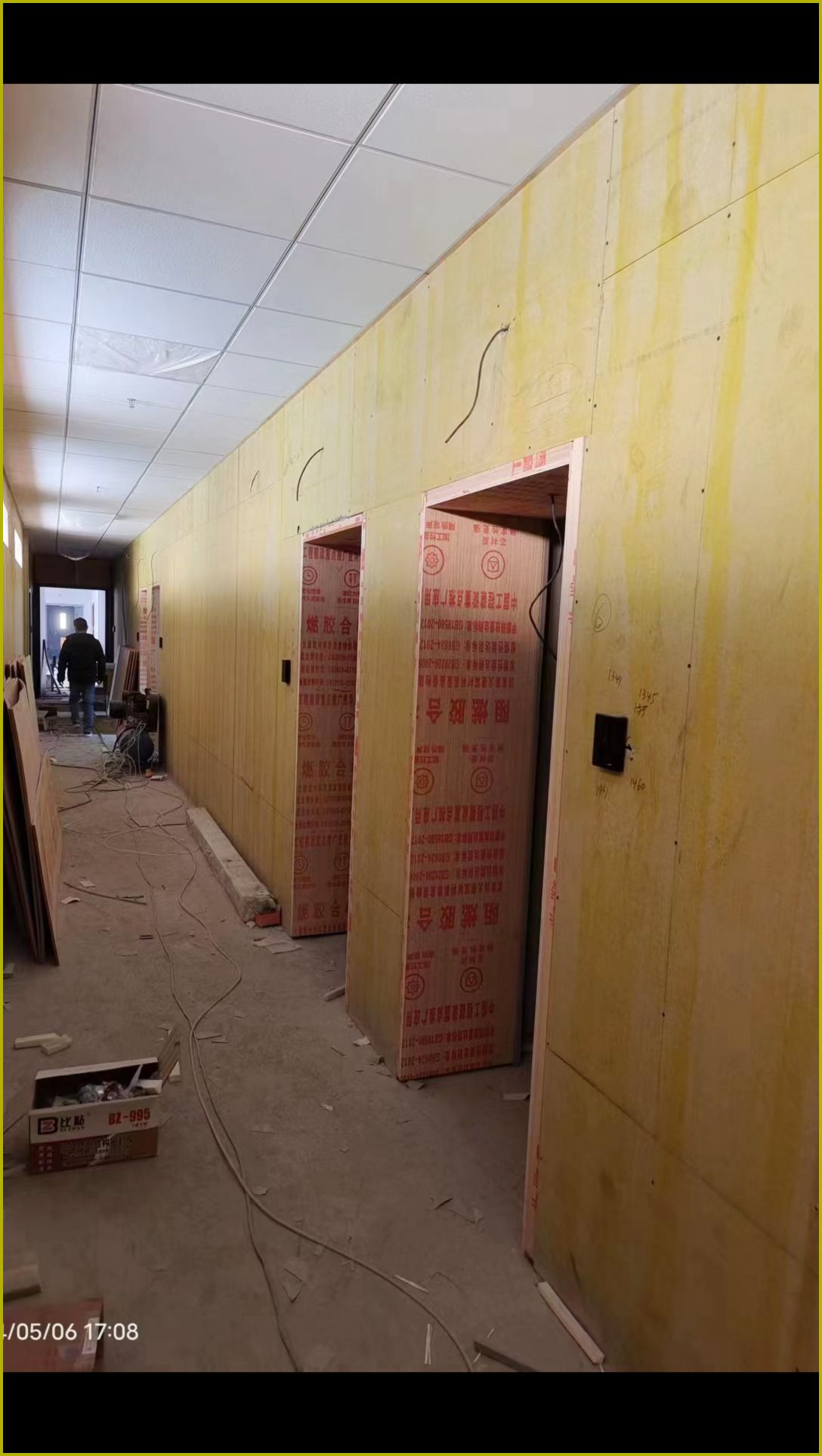

走廊墙面安装黄色岩棉板施工实景,纤维矿棉板用于墙体隔音保温防火工程
